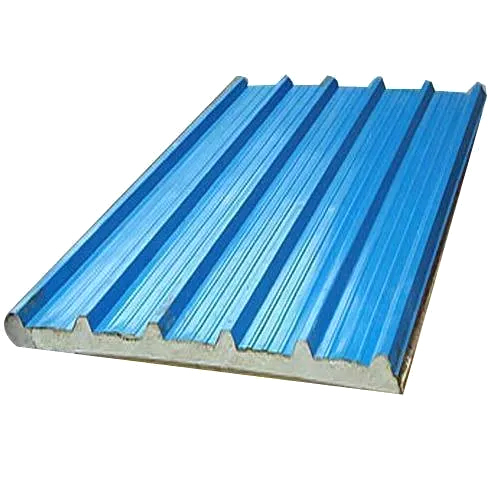

Puff panel

Puff panel Specification

Density
40 Gram per cubic centimeter(g/cm3)

Coating Type
Polyester/PPGI Coated

Layer
Three Layer (Metal-PUF-Metal)

Installation Guideline
Panels should be installed on a clean, even surface; Use recommended joining systems; Follow manufacturer guidelines

Feature
High insulation, Moisture resistance, Light weight, Corrosion resistance

Size
Customized length up to 12 meters

Thermal Conductivity
0.023 W/mK

Surface Treatment
Pre-coated, Galvanized, Painted

Product Type
Insulated Puff Panel

Material
Polyurethane Foam (PUF) Core with Pre-coated Galvanized Iron (PPGI) Sheets

Tensile Strength
0.18 N/mm²

Width
1000 mm (Standard), Customizable

Thickness
30 mm to 150 mm

Application
Cold Storage, Roofing, Wall Cladding, Clean Rooms, Prefabricated Structures

Heat Conductivity
0.023 W/mK

Color
White, Blue, As per requirement

Max Withstanding Temperature
-30°C to +110°C

Fire Resistance
Self-extinguishing, Conforms to FM/IS standards

Panel Length
Up to 12 meters (customized)

Panel Joint
Tongue and Groove or Camlock system

Panel Weight
Approx. 10-12 kg/m2 (depending on thickness)

Eco-friendliness
CFC and HCFC free core material

Water Absorption
<1% by volume at 100% RH

Usage Life
15-25 years with proper maintenance

Sound Insulation
Good acoustic insulation properties; Up to 25 dB reduction

Manufacturing Standard
IS:12436, ASTM C 1029

Compressive Strength
0.2 N/mm2 minimum

About Puff panel

Experience a distinguished upgrade with our monumental Puff Panels, engineered for glorious fire resistance and exceptional insulation. This limited time offer promises panels with CFC and HCFC free PUF cores, conforming to FM/IS standards and boasting self-extinguishing properties. With compressive and tensile strengths, water absorption under 1%, and superior acoustic reduction up to 25 dB, our panels are ideal for cold storage, roofing, and prefabricated structures. Customizable up to 12 meters, eco-friendly, and lightweight, they guarantee an extensive 15-25 year usage life. Instant checkout availableseize this exclusive opportunity now.

Versatility and Features for Modern Constructions

These Puff panels provide high insulation, moisture and corrosion resistance, and minimal upkeep. Engineered for use on multiple surfaces, including walls, roofs, and clean rooms, they adapt effortlessly to diverse environments. Suitable for cold storage, prefabricated structures, industrial claddings, and controlled environments, their lightweight, customizable sizes make installation straightforward and efficient, meeting the demands of both commercial and residential settings.

Dispatch Excellence and Certified Quality Assurance

We offer prompt dispatching from certified FOB ports across India, ensuring swift delivery of your order. Dispatched panels are fully certified to IS:12436 and ASTM C 1029 standards, with full manufacturer guarantees. Charges for delivery are calculated as per your order specifications. Our commitment to quality and timely service ensures every order reaches you securely and efficiently, backed by rigorous certification protocols and trusted supplier networks.

FAQs of Puff panel:

Q: How do Puff panels enhance fire safety in buildings?

A: Puff panels feature a self-extinguishing core that conforms to FM/IS fire resistance standards, providing significant protection against fire hazards and improving overall safety.

Q: What is the recommended process for installing Puff panels?

A: For optimal performance, panels should be installed on a clean, even surface using tongue-and-groove or camlock joining systems, and by following all manufacturer installation guidelines.

Q: Where can these panels be effectively used?

A: These panels are suitable for cold storage, roofing, wall cladding, clean rooms, prefabricated structures, and other applications that demand high insulation and durability.

Q: What certifications do the Puff panels carry?

A: Our panels are fully certified to IS:12436 and ASTM C 1029 manufacturing standards, ensuring superior quality and reliability for diverse market requirements.

Q: When will my order be dispatched after instant checkout?

A: Orders are dispatched promptly from our certified FOB ports, typically within a few working days, depending on panel customization and order size.

Q: What benefits do Puff panels provide for owners and builders?

A: Owners and builders benefit from excellent thermal and sound insulation, reduced energy costs, long-lasting durability, eco-friendly materials, and custom sizing options.
